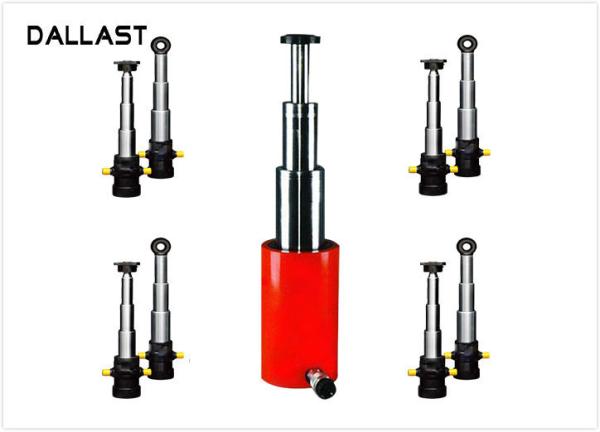

3 / 4 Stage Telescopic Hydraulic Ram / Single Acting Hydraulic
Cylinders for Dump Truck
Product Description:
Sealing system
All the hydraulic cylinders produced by our company adopt the seal
ring products of Parker, Merkel and Busak+Shamban.
Guide sleeve
The sleeve is made of high strength spheroidal graphite cast iron
and high strength steel under buffering inner bore copper welding
treatment.
Cylinder block
The cylinder block is made of high strength carbon steel. The
internal surface of the cylinder is designed with proper strength,
size, and thickness of cylinder body, and it has good degree of
finish and rigidity under the tumbling treatment which minimizes
the inner friction, improves the wear resistance and prolongs the
service life.
Application
Construction vehicle, excavator, crane, construction machinery,
shipbuilding, metallurgy industry, hydro power project, agriculture
machinery etc.
Parameter:
| TG series hydraulic cylinder for vechile |
| Model | Rated pressure | Bore diameter | Installation distance | Stroke | Rated theoretical thrust(KN) |
| (MPa) | (mm·) | (mm) | (mm) | First class | Last class |
| 4TG-E180*800 | 16 | 180 | 140 | 800 | 410 | 210 |
| 4TG-E160*800 | 16 | 160 | 140 | 800 | 320 | 170 |
| 3TG-E150*800 | 16 | 150 | 140 | 800 | 280 | 145 |
| 5TG-E130*750 | 16 | 130 | 140 | 750 | 210 | 110 |
| 3TG-E130*900 | 16 | 130 | 140 | 900 | 210 | 110 |
| 4TG-E110*1360 | 16 | 110 | 140 | 1360 | 150 | 32 |
| 3TG-E110*1530 | 16 | 110 | 140 | 1530 | 150 | 60 |
| 3TG-E110*1350 | 16 | 110 | 140 | 1350 | 150 | 60 |
| 3TG-E110*1020 | 16 | 110 | 140 | 1020 | 150 | 60 |
| 3TG-E110*900 | 16 | 110 | 260 | 900 | 150 | 60 |
| 2TG-E110*1020 | 16 | 110 | 140 | 1020 | 150 | 100 |
| 3TG-E90*1155 | 16 | 90 | 140 | 1155 | 100 | 30 |
| 3TG-E90*1020 | 16 | 90 | 140 | 1020 | 100 | 30 |
| 3TG-E90*900 | 16 | 90 | 260 | 900 | 100 | 30 |
| 3TG-E90*750 | 16 | 90 | 140 | 750 | 100 | 30 |
| 2TG-E90*900 | 16 | 90 | 140 | 900 | 100 | 60 |
| 2TG-E90*600 | 16 | 90 | 260 | 600 | 100 | 60 |
| 2TG-E90*500 | 16 | 90 | 260 | 500 | 100 | 60 |
| 3TG-E70*750 | 16 | 70 | 140 | 750 | 60 | 20 |
| Hydralic Cylinder for Dump Truck |
| HS Code | 8412210000 |
| Application | Dump Truck |
| Material of cylinder tube | Alloy Steel, Stainless Steel |
| Seal | Parker, Merkel and Busak+Shamban |
| Coating | Chrome plated |
| Temperature | -30ºC~80ºC |
| Working pressure | 16mpa-62mpa |
| Stroke | 300mm-10000mm |
| Color | Red black blue gray, according to your requirements |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Warranty | One year after shipping arrival |
| Payment terms | T/T, L/C, West Union,Paypal |
| Delivery time | 15- 25 days after down payment |
Cylinder and cylinder of the advantages and disadvantages:
1. As the hydraulic system uses pressure is generally in the range
of 0.2-1.0Mpa, so the cylinder is the driving force can not do
high-power components. Hydraulic cylinders can be done relatively
large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and
supply difficulties, the gas will be used directly into the
atmosphere, convenient, no pollution, hydraulic oil is the
opposite;
3. The air viscosity is small, the resistance to less than the
hydraulic oil;
Profile:
Dallast Technology Co., Ltd established in 2002, Ours factory has
been focused on hydraulic cylinder and power unit for 15 years.
Ours hydraulic cylinder has been sold around the world. We mainly
produce telescopic hydraulic cylinder for dump truck, hydraulic
cylinder for trailer and other Machinery hydraulic cylinder. We can
also produce hydraulic cylinder according to your drawing.
Product Show:
