Hydraulic Mobile Scissor Lift Cylinder Double Acting Stroke 600 mm
for Industry

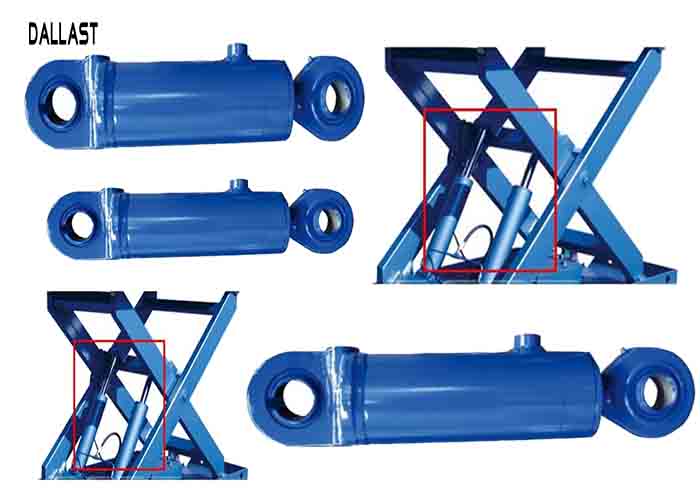

This lift cylinder is designed for the purpose of lifting light
vehicles(with low profile) under 3.2 tons for vehicle test, service
and cleaning.
Advantdges:
Big lifting force; Higher efficiency; Stronger weather resistance; Better performance
Warranty: We offer 12 months warranty
| Piston Ø | customized |
| Piston rod Ø | customized |
| Mounting | choice of Mounting Styles, Cross Tube or Trunnion |
| Operature temperature | -30℃-80℃ |
| Max. stroke speed | according to the product types |
| Operating pressure | 10-35 MPa |
| Stroke(mm) | 500-4000 mm |
| Close length(mm) | 100-1500 mm |
| Capacity(ton) | 3-60 ton |
| |
We can OEM & ODM, if you are interested in our products, please
feel free to contact us, send us the drawings and tell us the
details. |
QC:
The whole production procedure will be under regular inspection and
strict quality control.
The complete machine will be tested to make sure they can work very
well before being out of factory.
A cylinder (cylinder) consists of four parts:
1. Cylinder
2. Mounting types
3. Bottom
4. Bushing
Two piston rod (ROD) consists of three parts:
1. Rod
2. Earrings
3. Bushing
A. The above components; cylinder internal piston divided into two
parts, respectively, large cavity and small cavity;
B. Large cavity refers to the piston rod is fully extended, the
cylinder cavity;
C. Small cavity refers to the fully extended piston rod, cylinder
and rod body cavity;
D. As the viscosity of hydraulic oil is relatively high, the
compression ratio is very small, when the cylinder bottom oil into
the oil, the piston will be pushed out of the cylinder head oil
port, the piston rod to promote or retract movement, and vice versa
.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI
minimum yield material in 1" through 4 1/2" diameters. Larger
diameters vary between 50,000 and 75,000 PSI minimum yield
material. All rods are case hardened to 50-55 RC and hard chrome
plated to provide maximum wear life. Stainless steel is also
available. The hard chrome plated of the piston rod according to
your requirement.
The most common problems when selecting a hydraulic cylinder are as
follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
