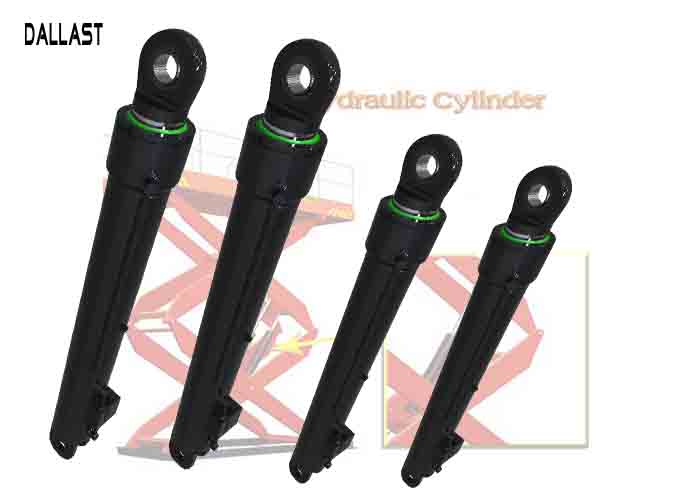

Hydraulic Lift Cylinder Piston Double Acting Double Earring for
Scissor Lift Platform
Scissor lift hydraulic cylinder is extensively applicable in many
areas as a dock
leveler for high range vertical movement. These lifts provide
non-marking rough terrain
tires, platform work lights and pothole guards. constructed
robustly to ensure the maximum and reliable performance, easy
operation and installation. These lifts have extreme strength with
working height of13.8 meters and lift capacity of up to 3 tons.
Advantages:
Bore 2"
Stroke 24"
Rod 1.25"
Retracted 32"
Extended 56"
- Pressure tested with ports sealed from the factory
- Double acting cylinder
- Cross tube mounting style
HSG series double function single rod piston hydraulic cylinder is
the actuator of reciprocating linear movement in hydraulic system.
It maintains the feature of simple structured, reliable,detach and
attach easily, maintain easily, buffer equipment and multi-connect
ways etc. |
| Mode NO | Pressure (Bar) | Capacity (ton) |
Cylinder bore (mm) |
The diameter of rod (mm) | Stroke (mm) | Mounting distance (mm) |
| HSG800.55A.012 | 34 | 3 | 80 | 32 | 200 | 535 |
| HSG600.55B.2a | 54 | 3 | 75 | 32 | 110 | 423 |
| HSG00.55C.2a | 63 | 3 | 75 | 32 | 110 | 423 |
| HSG700.55D.011 | 51 | 3 | 100 | 40 | 200 | 516 |
| HSG1004.55.8 | 87 | 3 | 90 | 35 | 200 | 535 |
| TG1204.551.1 | 48 | 3 | 100 | 40 | 185 | 535 |
| TG1854.551.2 | 93 | 3 | 110 | 70 | 182 | 535 |
| TG1854.551.3 | 180 | 3 | 110 | 70 | 182 | 535 |
Please note that the regularly stocked cylinders above. If you are
interested in our hydraulic cylinders for agricultural machinery,
please feel free to contact our office and sent us your drawings to
place an order for quick delivery.
About piston rod:
All rods are case hardened to 50-55 RC and hard chrome plated to
provide maximum wear life. Stainless steel is also available. The
hard chrome plated of the piston rod according to your requirement.
Piston Seals:
Low friction, high load piston seals with outboard wear bands are
standard. Loaded lip seals and cast iron rings are optional.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring -
grinding - car processing - black nitriding and many other
processes.
3. The company accepted the Valet processing various types and
various sizes products, processing and processing more quotes,
welcome to consult.
Warranty:
We offer 12 months warranty.
Tips:
Do you need special cylinders?
Our technicians will help you to design them and we will
manufacture them according to your requirements.
We offer OEM, ODM. If you needed, please feel free to contact us
and send us the drawings.
| A. The drawing details are as follows. |
| Bore size | Stroke length
|
| Rod diameter | Mounting type
|
| Mounting length | Paint color requirement
|
B. The product application description details |
| 1. Type of machine(loader, steer loader, excavator, and etc.) |
2. Type of function(hoist, swing, steering, and etc.) 3. Type of structure(piston, telescopic) |
| 4. Single or double acting |
| 5. Operating pressure |
