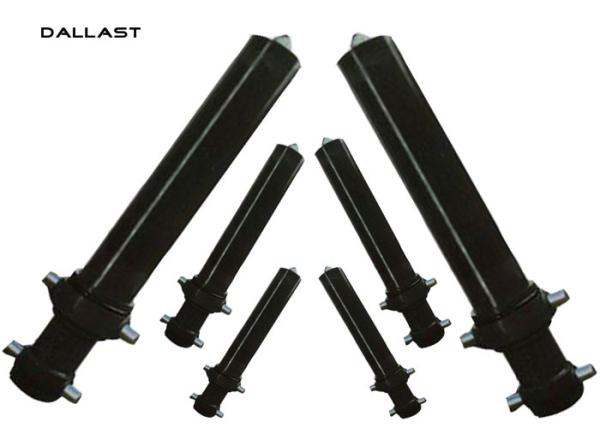

Single Acting Hydraulic Ram Dump Trailer Hydraulic Cylinder 20 Inch
Stroke
China dallast Hydraulics works with companies in all types of
industries, including trucking(car tailgate), food processing,
manufacturing, heavy equipment, medical equipment, material
handling(dock leveler, hydraulic/electric scissor lift,
hydraulic/electric stacker, electric forklift )and more. In
companies as diverse as they come, and in countries all over the
world, our products can be found.
When your product needs to move – up and down, side to side or with
heavy loads – we can help. Our AC Power Units, DC Power Units,
Pumps, valves and Dyna-Lift Work Stations are the finest in the
industry. Industries We Serve The industries we serve are vastly
diverse. Some are the traditional ones you think of when you hear
"hydraulics," and others will surprise you.
Other information:
| Used in earthmoving machines, machine building applications,
petrochemicals, marine applications, plastics, automobiles, dishes
ends |
| Available in multistage (telescopic), single acting, double acting,
tie rod, cushion at either or both the ends twin pistons in dia
ranging from 20 to -1000mm and stroke up to 5200 mm with max
pressure up to 350bar |
| Used for PU seals, bronze filled teflon, chevron, asbestos
impregnated nitride seals, rod seals |
| The cylinders are either machined from imported own carbon.
seamless tubes or steel casting duly ground and honed |
| Piston rod of EN-8 is ground and hard chrome plated |
| Model | Stroke | Mounting distance | The largest sleeve OD | Model | Stroke | Mounting distance | Largest Stage Diameter |
| FC-4-129-4280 | 4280mm | 343mm | 218mm | FE-4-149-4280 | 4280mm | 1450mm | 149mm |
| FC-4-129-5180 | 5180mm | 343mm | 218mm | FE-4-149-4940 | 4940mm | 1529mm | 149mm |
| FC-4-149-3680 | 3680mm | 343mm | 218mm | FE-4-149-4620 | 4620mm | 1484mm | 149mm |
| FC-4-149-3980 | 3980mm | 343mm | 218mm | FE-4-169-4280 | 4280mm | 1394mm | 169mm |
Specifications:
1. Oil port connection: internal thread or flange
2. Cylinder head and cylinder connection: thread (less than 80mm
diameter) card key (more than 80mm diameter)
3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without
buffer)
Both ends with buffer
Without the rod side buffer (-2 ratio, only the cylinder head with
buffer)
Rod side band buffer
4. Piston rod end connection mode: rod end screw
In the end of the thread rod (for D-63mm diameter)
End of the rod end of the threaded rod end of the earrings with
bushing
Rod end inner threaded rod head earrings with bushing
Rod end threaded rod head earrings for joint bearing
Screw head mounted within the rod end joint bearing earrings (D-63
for bore diameter)
Integral piston rod and ring belt bushing
Integral piston rod ring joint bearing
5. Installation: cylinder head earrings with bushing
Cylinder head earrings with joint bearing/hinge axis/end
flange/middle flange
