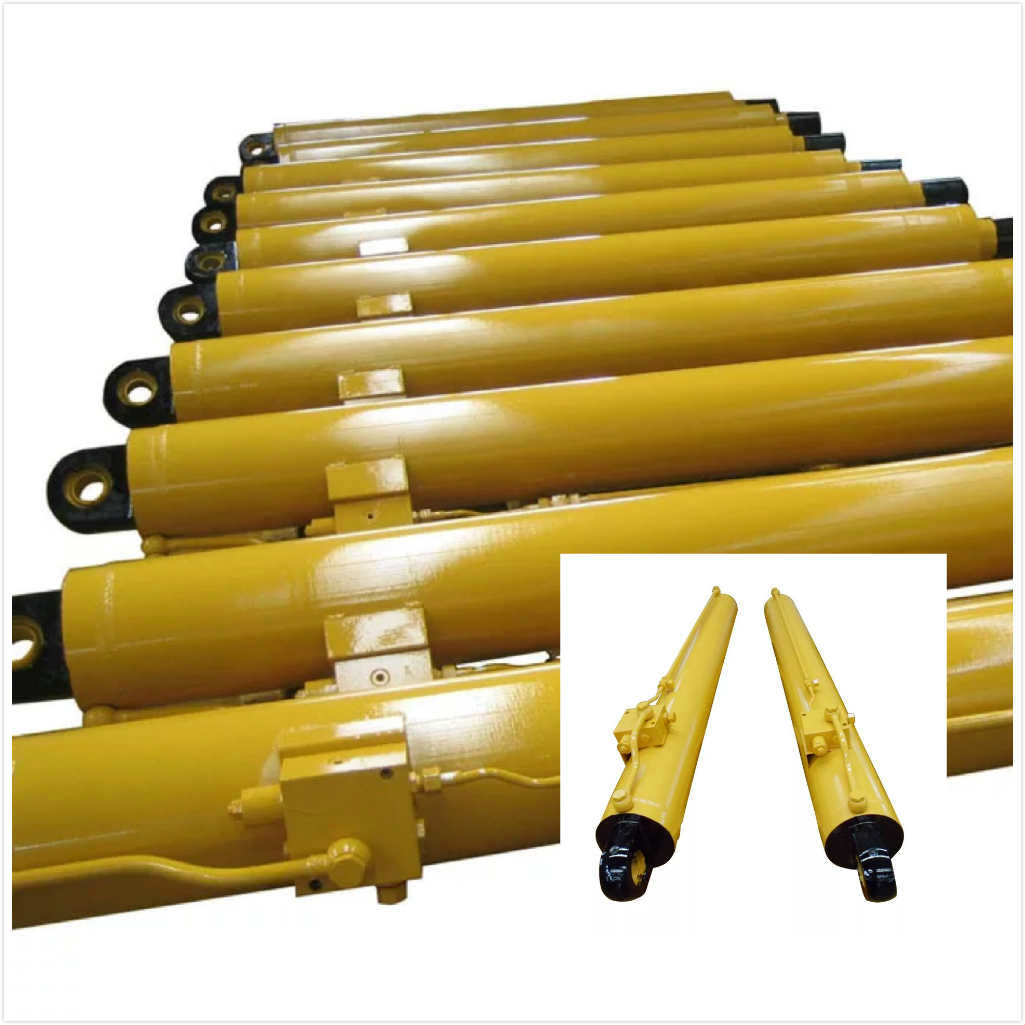

Dual Action 2 Way Chrome Crane Hydraulic Lift Arm Cylinder with
Piston
Cylinder Advantages:
- Material:Alloy steel,Carbon steel,Stainless steel,27SiMn
- Rod :Chrome plated and quenched.Has good mechanical properties,
long service life
- Cylinder:Honing machining /boring /rolling
- Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS,
CNAS Certification
- Experience in export North America, Australia, Asia, Middle East,
Africa
- We are professional manufacturer and supplier in hydraulic cylinder.
- We do accept OEM manufacturing. We will provide competitive price and make the exact cylinder according to your specification and
drawing.
- We have professional R&D team with rich design experience.
- We also establish strict but scientific product testing system so
that products have perfect performance.
- One year warranty and long time track service is offered to solve
any problems you meet after sale.
Cross manufactures a large range of custom hydraulic cylinders for
a wide diversity of applications and markets:Heavy duty mining, metallurgy, forging, casting, engineering
transportation, hydraulic machinery, food processing machinery,
machine tools, civil engineering, construction machinery, chemical
machinery, medical machinery, injection molding machinery,
automated assembly line, Light industry machinery,agriculture,material handling,mobile and utility,airport ground
equipment,solid waste handling,drilling
,marine,forestry,military contracts.
We are giving the best quality Hydraulic Cylinder to our various
clients across the world. To manufacture the hydraulic cylinder we
are maintaining high level infrastructure without any compromise.
We have different kinds of Hydraulic Cylinders like Hydraulic
Cylinder for Automotive, Hydraulic Cylinder for Heavy Machinery,
Hydraulic Cylinder for Earthmoving Equipments, Telescopic Hydraulic
Cylinder, Hydraulic Cylinder for Cement Plants and many more items
with effective time delivery to our customers.
We can design piston hydraulic cylinder for what you want if you
can provide us the following technical parameters:
Bore diameter;
Rod diameter;
Stroke;
Working pressure;
Front and back end mount type;
Using frequency;
Work Environment;
Certainly, you can provide drawing and product photos so that we
can understand your meaning more conveniently, or you can also send
us sample and we produce for you according to your sample.
| Hydraulic cylinder for crane series are match wtih CAMC. Welcome to
custom-made. |
| Cylinder Name | Model | Pressure (Mpa) | Cylinder
diameter(mm) | Rod diameter
(mm) | Stroke
(mm) |
| 12T Front horizontal cylinder | 50/35-1700 | 20 | 50 | 35 | 1700 |
| 12T Horizontal back lever | 50/35-1400 | 20 | 50 | 35 | 1400 |
| 12T Streight telescopic boom cylinder 1 | 80/63-2940 | 25 | 80 | 63 | 2940 |
| 12T Streight aim telescopic cylinder 2 | 80/55-2820 | 25 | 80 | 55 | 2820 |
| 8T Folding boom vertical cylinder | 100/75-520 | 30 | 100 | 75 | 520 |
| 8T Folding boom luffing cylinder | 170/110-610 | 30 | 170 | 110 | 610 |
| 8T Folding boom luffing cylinder 2 | 170/110-677 | 30 | 170 | 110 | 677 |
| 8T Folding boom telescopic cylinder | 85/60-1770 | 30 | 85 | 60 | 1770 |
| 8T Folding boom horizontal cylinder | 50/30-1650 | 25 | 50 | 30 | 1650 |
| 12T rear verticle cylinder | 100/75-454 | 25 | 100 | 75 | 454 |
| 12T Front lever cylinder | 100/75-610 | 25 | 100 | 75 | 610 |
| 12T Streight arm luffing cylinder | 160/110-692 | 25 | 160 | 110 | 692 |
| 20T Rear horizontal cylinder | 50/35-1700 | 25 | 50 | 35 | 1700 |
| 12T Streight telescopic boom cylinder | 80/55-2820 | 25 | 80 | 55 | 2820 |
| 12T Streight telescopic boom cylinder | 80/63-2940 | 25 | 80 | 63 | 2940 |
| 20T Rear horizontal cylinder | 100/70-449 | 26 | 100 | 70 | 449 |
| 12T Left front streight cylinder | 110/90-620 | 25 | 110 | 90 | 620 |
| 12T Front horizontal cylinder | 50/35-1700 | | 50 | 35 | 1700 |
| 20T Right front horizontal cylinder | 115/95-490 | 26 | 115 | 95 | 490 |
| 5T Streight arm luffing cylinder | 150/110-608 | 26 | 150 | 110 | 608 |
| 5T Streight arm horizontal cylinder | 50/30-1410 | 20 | 50 | 30 | 1410 |
| 5T Streight arm landing leg cylinder | 80/63-590 | 25 | 80 | 63 | 590 |
| 5T Streight arm telescopic cylinder | 80/60-2400 | 21 | 80 | 60 | 2400 |
| 3.2T Luffing cylinder | 125/70-537 | 20 | 125 | 70 | 537 |
| 3.2T Landing let cylinder | 80/63-550 | 25 | 80 | 63 | 550 |
| 3.2T Telescopic combined cylinders | 55/45-2100 | | 55 | 45 | 2100 |
| 6.3T Streight arm luffing cylinder | 160/125-610 | 26 | 160 | 125 | 610 |
| 6.3T Streight arm telescopic cylinder | 90/70-2350 | 21 | 90 | 70 | 2350 |
Program before delivery:
1. Trial Operation Test
2. Start-up Pressure Test
3. Pressure-Tight Test
4. Leak Test
5. Full Stroke Test
6. Buffer Test
7. Testing the Effect of Limit
8. Load Efficiency Test
9. Reliability Test Every piece of hydraulic cylinder are tested and will send out only
after they are pasted the each test. |
