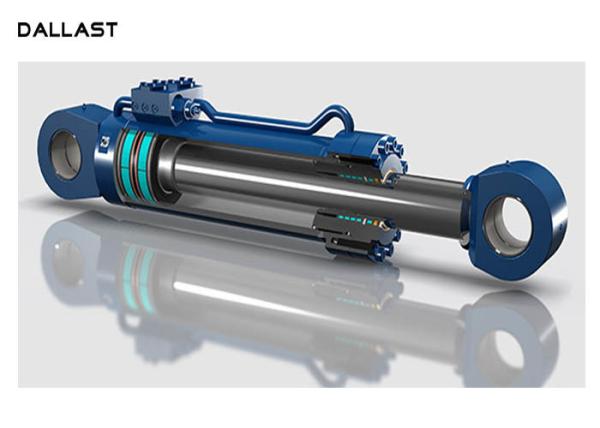

OEM Double Acting Long Stroke Heavy Duty Hydraulic Cylinder Ram
Specifications:
| All Seals | Manufactured to US specification |
| Ports | NPTF(SAE port or other can be available) |
| Test | 100% hydro-pressure test |
| Rod surface treatment | Superior quality chrome plated |
| Apply | Apply LOCTITE to rod end thread |
| Cylinder Capacity | 40,000units / year Cylinder Capacity |
| Shipping | SAE, NPT, NPTF, BSP, Ports available |
| Custom-Made cylinders and components | available |
| Cylinder Range | Bore: 18mm - 800mm (0.75" ~24") Stroke: 100mm - 8000mm. (4" ~315") |
| Main markets | America, Europe, Australia, Japan, China |
WE FOCUS ON QUALITY!
DALLAST focus on manufacturing all kinds of cylinders used for
Machinery, Equipment, Metallurgy, Water Conservancy, Mining,
Offshore, Truck, etc. We also can design or do OEM in accordance
with client's special requirements. We have our own professional
design team, advanced production equipment, and strict quality
control system to improve the reliability, safety and economy of
products. In order to create real benefit for clients, DALLAST will
offer a full set of services, such as consulting solutions,
products installation, technical support, etc.
1. Piston type hydraulic cylinder
2. Plunger type hydraulic cylinder
3. Telescopic type hydraulic cylinder
4. Welded hydraulic cylinder
5. Flange mounted hydraulic cylinder
6. Tie rod hydraulic cylinder
7. Double acting hydraulic cylinder
8. Single acting hydraulic cylinder
9. Multistage hydraulic cylinder
10. Servo hydraulic cylinder
| Output table of hydraulic cylinder |
| Bore(mm) | Rod(mm) | Working pressure |
| 2Mpa | 5Mpa | 7Mpa | 10Mpa | 12Mpa | 14Mpa |
| Pull(KG) | Push(KG) | Pull(KG) | Push(KG) | Pull(KG) | Push(KG) | Pull(KG) | Push(KG) | Pull(KG) | Push(KG) | Pull(KG) | Push(KG) |
| 40 | 20 | 188 | 252 | 470 | 630 | 658 | 882 | 940 | 1260 | 1128 | 1512 | 1316 | 1764 |
| 50 | 25 | 294 | 392 | 435 | 980 | 1029 | 1372 | 1470 | 1960 | 1764 | 2352 | 2058 | 2744 |
| 63 | 30 | 482 | 624 | 1205 | 1560 | 1687 | 2184 | 2410 | 3120 | 2890 | 3744 | 3374 | 4368 |
| 80 | 40 | 754 | 1006 | 1885 | 2515 | 2633 | 3521 | 3770 | 5030 | 4524 | 4636 | 5278 | 7042 |
| 100 | 50 | 1178 | 1570 | 2946 | 3927 | 4124 | 5498 | 5891 | 7854 | 7069 | 9425 | 8247 | 11000 |
| 125 | 60 | 1889 | 2454 | 4722 | 6136 | 6611 | 8590 | 9444 | 12272 | 11333 | 14736 | 13222 | 17180 |
| 150 | 70 | 2754 | 3534 | 6911 | 8835 | 9675 | 12369 | 13822 | 17670 | 16586 | 21204 | 19351 | 24738 |
| 180 | 80 | 4084 | 5089 | 10210 | 12724 | 14295 | 17813 | 20421 | 25447 | 24505 | 30536 | 28589 | 35626 |
| 200 | 100 | 4712 | 6283 | 11781 | 15708 | 16493 | 21991 | 23562 | 31416 | 28274 | 37699 | 32987 | 43982 |
| 250 | 140 | 6739 | 9018 | 16847 | 22544 | 23586 | 31562 | 33694 | 49088 | 40433 | 58906 | 47172 | 68723 |
| 300 | 180 | 9048 | 14137 | 22620 | 35343 | 31667 | 49480 | 45239 | 70686 | 54187 | 84823 | 63335 | 98960 |
FAQ:
1. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
3. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them,no matter where they come from.
