Single Acting Telescopic Welded Hydraulic Cylinder for Agricultural
Dump Truck
Cylinder and cylinder of the advantages and disadvantages:
1. As the hydraulic system uses pressure is generally in the range
of 0.2-1.0Mpa, so the cylinder is the driving force can not do
high-power components. Hydraulic cylinders can be done relatively
large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and
supply difficulties, the gas will be used directly into the
atmosphere, convenient, no pollution, hydraulic oil is the
opposite;
3. The air viscosity is small, the resistance to less than the
hydraulic oil;
4. But the air is much larger than the compression rate of
hydraulic oil, so it's working smoothly and to respond to far
backward in this regard.
Hydraulic cylinder hydraulic system is the most important
components of implementation, it can convert mechanical energy of
hydraulic and matched with a variety of transmission to complete
all of the mechanical movement. Hydraulic cylinder has a simple
structure, the output force, stable and reliable performance and
easy maintenance, wide range of applications and so on.
Characteristics:
- Larger diameter, more lifting capacity.
- Max working pressure reaches 250 bar, better anti-pressure
ability.
- Special material with high quality, high-precision, better
anti-bending ability.27SiMn alloy steel, Chromed 30um thickness,
hardening and tempering
- New model guide ring combined with lubricating material,
guarantee smooth lifting.
- Modified seal structure, guarantee no oil leak under high
pressure and bad working environments.
- Maintenance-free support, longer working life.
- Integrated design, easy to maintain.
- 100% tested, guarantee high quality.
Attention:
1. We have special departments to ensure that no strict quality
control any quality problem before delivery.
2. Carefully check goods size table and product specifications.
Please check detail with customer service before buying
3. Receiving or take the goods, please sign the bill after the
first inspection, if have damaged items, or a few goods phenomenon,
please do not sign, the first contact with the customer details and
make logistics company personnel or personnel in proof of delivery
after processing, or receipt of any problems after the Seller shall
not be held responsible.
Parameter:
| Model | Lifting. (T) | Pressure
(Mpa) | Seal height
(mm) | Cylinder capacity
(L) | Suitable container length (mm) | Rear overhang
(mm) |
| 3TG-E152×3830 | 29 | 16 | 1618 | 59 | 5200-5400 | 800 |
| 3TG-E152×4000 | 29 | 16 | 1675 | 62 | 5400-5600 | 800 |
| 4TG-E152×4270 | 29 | 16 | 1414 | 58 | 5600-5800 | 800 |
| 4TG-E152×4270 | 29 | 16 | 1509 | 63 | 5800-6200 | 800 |
| 4TG-E152×4270 | 29 | 16 | 1597 | 67 | 6200-6400 | 800 |
Profile:
We are Dallast Technology Co., LTd, leading manufacturer for
hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
Products:full series of hydraulic cylinder, heavy duty hydraulic
cylinder, hoist cylinder, oil cylinder, super size hydraulic
cylinders.
15 years in manufacturing hydraulic cylinders, application for
water conservancy projects, vehicles, machinery equipments, ship
building, military industry and metallurgy equipments.
The only one super size cylinder manufactuer in China.
Full experience in design, produce, mounting, testing, operation
and maintenance.
Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity
over 2000t.
Strong technological force and advanced technique and equipment,
such as 3 sets of sunnen grinding machines.
2000m2 synthetic office building of computer control net work
center
GB/T9001-2000, IDT ISO 9001:2000 quality management system.
AAA grade credit certificate issued by international credit
assessment center
FAQ:
Q1: Are you a manufacturer or a trader?
We are manufacturer ,our own factory is located in Liaoning
province,China
Q2: How do you protect customer's right?
DALLAST's work habit is to sign confidential agreement with
own/outside factories all the time before start any project.
DALLAST also has signed confidential agreement with all its staffs.
Q3: How long shall we get the quotation?
Processing time for Enquiries :1-3 days

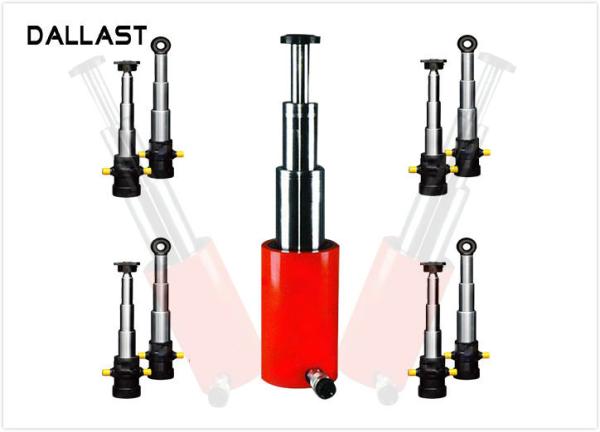

Product Show:
