Single Acting Multi Stage Telescopic Agricultural Truck Hydraulic Welding Cylinder
What's hydraulic cylinder?
A hydraulic cylinder is a mechanical actuator used to provide
unidirectional Force through a unidirectional stroke. Hydraulic
cylinders are used in almost every industry and are available in a
variety of confiurations.
the two main types of hydraulic cylinders are Tie-rod and Welded.
Each of these cylinder types can have unique applications due to
their designs.
Tie-rod cylinders are usually installed in light to medium duty
applications and are generally designed to be repaired or re-packed
if necessary.
Welded cylinders are designed for most applications and are more
complex in Design, but are generally more diffiult to repair due to
the welded design. Welded cylinders are typically a better solution
due to their compact design and when a more robust design is
important in an application.
Single Acting:
Single acting telescopic cylinders are the simplest and most common design
As with a single acting rod style cylinder the single acting telescopic cylinder is extended using hydraulic pressure, but retracts using external forces when the hydraulic pressure is removed and relieved to the reservoir
This external retraction force is usually gravity acting on the weight of the load
This external weight must obviously be sufficient to overcome the friction and mechanical losses within the machine design even after the work portion of the machine cycle has been accomplished. In the example above of the dump truck, the weight of the dump body now raised at an angle of 60, but empty of the load, most be enough to force the un-pressurized hydraulic fluid out of the cylinder and cause it to retract to the fully collapsed position.
Quality Control:
· All specification is designed by professional engineer
· All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.
· All material is processed by skilled workers and advanced CNC lathe
· All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
· Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely
· One year warranty and life long time follow up service is offered to solve any problems you met when use our products
After-sales Service of Hydraulic Cylinder:
1. we offer the spare parts free of charge.
2. we offer one year guarantee period on the product quality
If you need more information, please contact me without any
hesitation. Sincerely welcome you to visit our factory at any time!
Cylinder and Cylinder of the Advantages and Disadvantages:
1. As the hydraulic system uses pressure is generally in the range
of 0.2-1.0Mpa, so the cylinder is the driving force can not do
high-power components. Hydraulic cylinders can be done relatively
large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and
supply difficulties, the gas will be used directly into the
atmosphere, convenient, no pollution, hydraulic oil is the
opposite;
3. The air viscosity is small, the resistance to less than the
hydraulic oil;
Parameter:
1) Bore diameter 2) Piston rod diameter 3) Stroke length 4) Working pressure 5) Mounting method | |
Telescoping Hydraulic Multi Stage Hydraulic Ram Cylinder for Agricultural Vehicles | |
Model Type | Multistage type |
Certificate | ISO9001&TS16949:2009 |
Body Material | Stainless Steel, Alloy Steel |
Shaft Diameter | 12mm-500mm, Requirements |
Pressure | 16MPa~32MPa |
Total Stroke | Requirements |
Surface Treatment | Chrome Plating |
Working type | Single or double acting |
Application | Agriculture machine |
Package | shrink film, pallet, plywood case and carton |
Warranty | One year after shipping arrival |
Payment terms | L/C, T/T, West Union |
Delivery time | 15- 25 days after down payment |
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements. |
Profile:
Dallast Technology Co., Ltd established in 2002, Ours factory has
been focused on hydraulic cylinder and power unit for 15 years.
Ours hydraulic cylinder has been sold around the world. We mainly
produce telescopic hydraulic cylinder for dump truck, hydraulic
cylinder for trailer and other Machinery hydraulic cylinder. We can
also produce hydraulic cylinder according to your drawing.

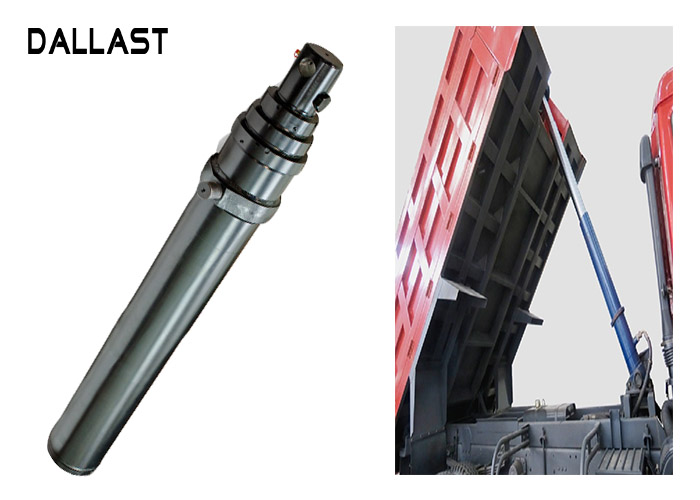

Product Show:
![]() |
