    2 / 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper

    Ask Lasest Price
    Brand Name : DALLAST
    Model Number : Standard , Non-standard
    Certification : GS CE ISO9001-2009 TS16949
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union,paypal
    Supply Ability : 50000PCS per year
    Delivery Time : 20- 25 days after down payment
    • Product Details
    • Company Profile

    2 / 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper

    2 3 Stage Hydraulic Oil Cylinder for Agricultural Dump Truck Trailer Tipper


    Cylinder Advantages:



    Application: The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;

    • Professional manufacturer& supplier of Hydraulic Cylinders
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    • Experience in export North America, Australia, Asia, Middle East, Africa
    • Hydraulic Cylinders can be Make according to client's requirements
    • One year warranty and long time track service is offered to solve any problems you meet after sale.

    We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:

    • Bore diameter;

    • Rod diameter;

    • Stroke;

    • Working pressure;

    • Front and back end mount type;

    • Using frequency;

    • Work Environment;

    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.

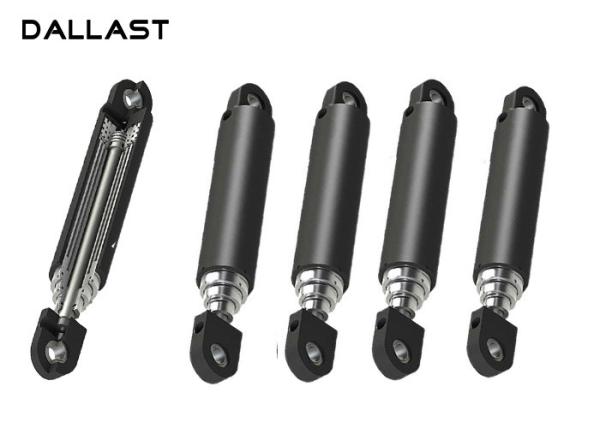

    Multi-stage telescopic sleeve cylinder


    Multi-stage hydraulic cylinder for large stroke and installation distance or total length (stroke can be greater than the installation distance or total length) occasions, single-acting and double-acting. The company's hydraulic cylinder with a compact layout, reasonable structure, reliable work, easy assembly and disassembly, easy maintenance and so on. Widely used in various mining machinery, lifting transport machinery, environmental protection machinery and transport machinery (wrecker). The series of hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and piston rod diameter and other parameters can be designed according to customer needs.


    Quality control

    • All specification is designed by professional engineer
    • All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.
    • All material is processed by skilled workers and advanced CNC lathe
    • All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
    • Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely

    We firmly believe that quality products from the outstanding design and concept,engineers with rich experience in our strong technical team. Analyzes, calculations, strength check and motion simulation in variety of software to make our design more close to actual working conditions, We will consider various factors in the design stage to avoid each risk of project failure. Our design and products could perfectly match customers' varied needs.


    TG series hydraulic cylinder for vechiles

    ModelRated pressureBore diameterInstallation distanceStroke
    (MPa)(mm)(mm)(mm)
    4TG-E180*80016180140800
    4TG-E160*80016160140800
    4TG-E150*83016150160830
    4TG-E140*80016140140800
    4TG-E140*73016140140730
    4TG-E135*80016135140800
    4TG-E135*73016135140730
    4TG-E130*75016130110750
    3TG-E150*80016150140800
    5TG-E130*75016130140750
    3TG-E130*90016130140900
    4TG-E110*1360161101401360
    3TG-E110*1530161101401530
    3TG-E110*1350161101401350
    3TG-E110*1020161101401020
    3TG-E110*90016110260900
    2TG-E110*1020161101401020
    3TG-E90*115516901401155
    3TG-E90*102016901401020
    3TG-E90*9001690260900
    3TG-E90*7501690140750
    2TG-E90*9001690140900
    2TG-E90*6001690260600
    2TG-E90*5001690260500
    3TG-E70*7501670140750
