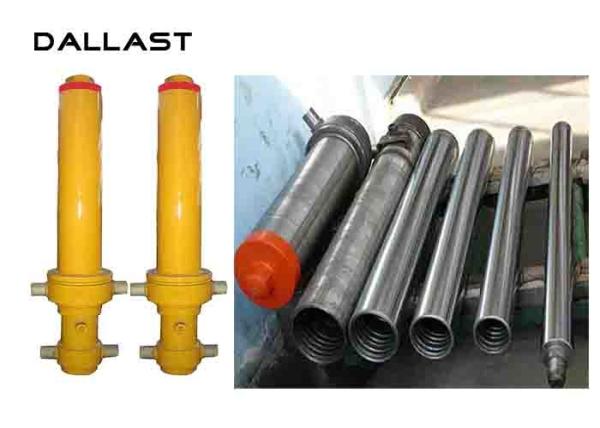

Long Stroke Hydraulic Cylinder Single Acting Multi Stage Hollow
Bore Hydraulic RAM
Features:
The length of a hydraulic cylinder is the total of the stroke, the
thickness of the piston, the thickness of bottom and head and the
length of the connections
Warranty: We offer 12 months warranty
Material: Stainless steel is used in many of our designs to ensure corrosion,
it does not end the life of the cylinder prematurely.
Acts on the piston to push the piston rod out
Choice of Mounting Styles, Cross Tube or Trunnion
Hard Chrome Plated Stages
Big lifting force
pressure ranges: could be customized
Piston Ø: customized
Piston rod Ø: customized
Max. stroke speed: according to the product types
We use hard chromed rods (other options are available)
Installation method:
The most commonly used mounting options are flange, trunnion,
clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting
is chosen based upon the application’s requirements.
Application:
Could be used for heavy vehicles, agricultural vehicles and other
vehicles tilting the bucket lift cylinder.
| standard product type | pressure (Bar) | stroke (mm) | close length (mm) |
| 3TG-E180*4210ZZ | 160 | 4210 | 311 |
| 4TG-E160*4130ZZ | 160 | 4130 | 311 |
| 4TG-E160*5150ZZ | 160 | 5150 | 343 |
| 4TG-E180*4000ZZ | 160 | 4000 | 343 |
| 4TG-E180*5390ZZ | 160 | 5390 | 343 |
| 3TG-E180*3850ZZ | 160 | 3850 | 343 |
| 4TG-E180*5390ZZ | 160 | 5390 | 343 |
| 4TG-E150*4400ZZ | 160 | 4400 | 343 |
| 4TG-E180*4595ZZ | 160 | 4595 | 343 |
| Tips | In order to tilt a dump truck to angles of 60° or more, telescopic
cylinders with strokes approaching the total bed length are
required. |
We can OEM & ODM, if you are interested in our products, please
feel free to contact us, send us the
drawings and tell us the details.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI
minimum yield material in 1" through 4 1/2" diameters. Larger
diameters vary between 50,000 and 75,000 PSI minimum yield
material. All rods are case hardened to 50-55 RC and hard chrome
plated to provide maximum wear life. Stainless steel is also
available. The hard chrome plated of the piston rod according to
your requirement.
The most common problems when selecting a hydraulic cylinder are as
follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
