Hyva Single Acting Dump Truck Long Stroke Hydraulic Lifting
Cylinder for Sale
Hydraulic Cylinder:
Hydraulic cylinder is both for single or double-acting applications
with heavy duty welded construction. Cylinder’s standard color is
black, orange or as per requirement. In addition, all seals are
manufactured to US specification, and being 100% hydro-pressure
tested before delivery. Rod surface treatment is for chrome plated
or as per requirement. Hydraulic cylinder’s standard is B type
piston (optional: A type piston).
Cylinder and Cylinder of the Advantages and Disadvantages:
1. As the hydraulic system uses pressure is generally in the range
of 0.2-1.0Mpa, so the cylinder is the driving force can not do
high-power components. Hydraulic cylinders can be done relatively
large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and
supply difficulties, the gas will be used directly into the
atmosphere, convenient, no pollution, hydraulic oil is the
opposite;
3. The air viscosity is small, the resistance to less than the
hydraulic oil;
4. But the air is much larger than the compression rate of
hydraulic oil, so it's working smoothly and to respond to far
backward in this regard.
A hydraulic cylinder is the most important components of
implementation, it can convert mechanical energy of hydraulic and
matched with a variety of transmission to complete all of the
mechanical movement. Hydraulic cylinder has a simple structure, the
output force, stable and reliable performance and easy maintenance,
wide range of applications and so on.
Quality Control:
1. External Inspection: Purchased Item Inspection, Outsourcing Item
Inspection
2. Process Inspection: First Inspection, Random Inspection,
Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100%
Hydraulic Test
4. Type Inspection
Every piece of hydraulic cylinder are tested and will send out only
after they are pasted the each test.
Our company has abundant technical force and perfect testing means.
By making wide technical and business cooperation with many related
enterprises, universities, colleges and institutes both at home and
abroad, and employing senior engineers and software engineers, we
have greatly strengthened and improved our designing, processing,
and testing abilities.
Parameter:
Single Acting Dump Truck Hydraulic Cylinders
|
| Model | Extended
Stages | Working Pressure | Max. stage | Max. stroke | Lifting
Capacity | Suitable Length of Truck Body |
| (MPa) | Diameter(mm) | (mm) | (ton) | (m) |
| 129-3E-3880 | 3 | 16-19 | 129 | 3880 | 20-35 | 5.2 |
| 149-3E-3880 | 3 | 16-19 | 149 | 3880 | 25-45 | 5.2 |
| 149-3E-4280 | 3 | 16-19 | 149 | 4280 | 25-45 | 5.6 |
| 149-4E-3880 | 4 | 16-19 | 149 | 3880 | 25-40 | 5.2 |
| 149-4E-4280 | 4 | 16-19 | 149 | 4280 | 25-40 | 5.6 |
| 169-4E-4640 | 4 | 16-19 | 169 | 4640 | 32-55 | 5.6-6.1 |
| 169-4E-5000 | 4 | 16-19 | 169 | 5000 | 32-60 | 6.2-6.8 |
| 169-4E-5180 | 4 | 16-19 | 169 | 5180 | 32-60 | 6.2-6.9 |
| 169-4E-5390 | 4 | 16-19 | 169 | 5390 | 32-60 | 6.2-6.9 |
| 169-4E-5460 | 4 | 16-19 | 169 | 5460 | 32-60 | 6.5-7.3 |
| 185-4E-4280 | 4 | 16-19 | 185 | 4280 | 25-45 | 5.6 |
| 185-4E-4640 | 4 | 16-19 | 185 | 4640 | 30-45 | 5.6-6.1 |
This product is used in numerous application including:
1. Dump truck.
2. Pump trucks.
3. Truck mounted crane.
4. sanitation truck Earth moving equipment, Drilling Rigs, Road and
Construction equipments, Cranes, Material handling equipments,
Mining Equipments, Plastic Mould Machine, Cement Factories, Special
Purpose Cylinders. | The above data for reference only, we can fully meet your
requirements to make customers satisfied with the product.If you
need, feel free to contact us and we can advise and design. |
FAQ:
| Questions: | Answers: |
| 1. Compared with Hyva cylinder, what are your cylinder advantages? | 1. Tubes are chrome plated.
2. Tubes are quenched and tempered. |
| 2. Compared with Hyva cylinder, what are your cylinder advantages? | 1. Tubes are chrome plated.
2. Tubes are quenched and tempered. |
| 3. Do your products come with a warranty? | Yes, we have one year warranty. In this year, if the quality have
problems we will free repair for you. |
| 4. How do you deliver the products? | By sea, By plane, By couriers. |
| 5. What’s your cylinder PPM? | 5000 PPM. We do 100% inspection before delivery. |
6.What 's the after-service? | If the quality can’t meet your requirements, we will pay all your
lost and offer technical support to solve your problem! |
| 7. What are the same aspects of your cylinder with Hyva cylinder? | 1. Same inside structure. 2. Same outside dimension and same mounting sizes. It can be
interchangeable with Hyva's. |

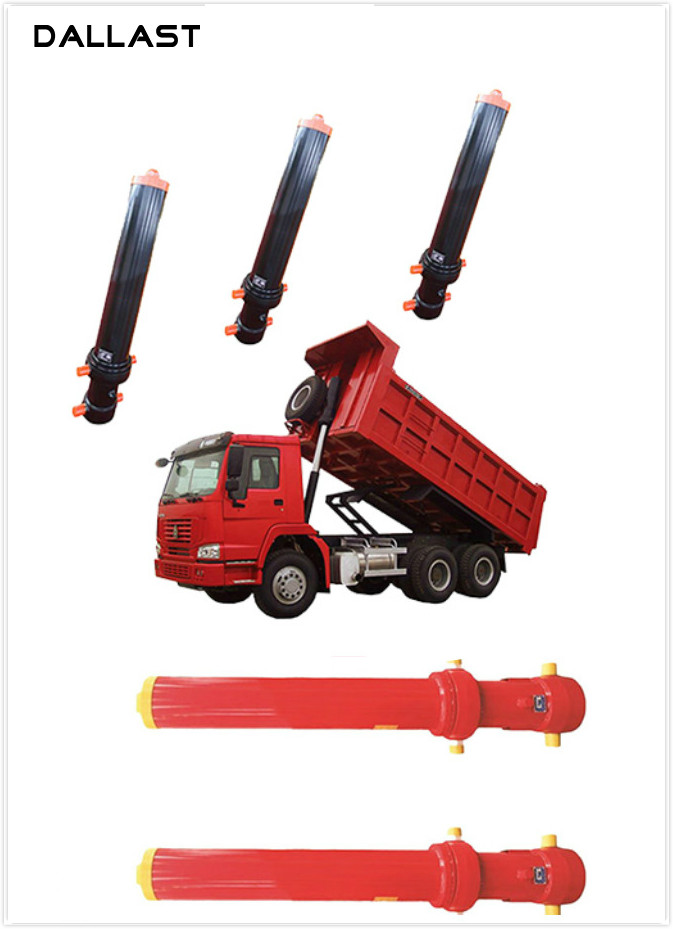

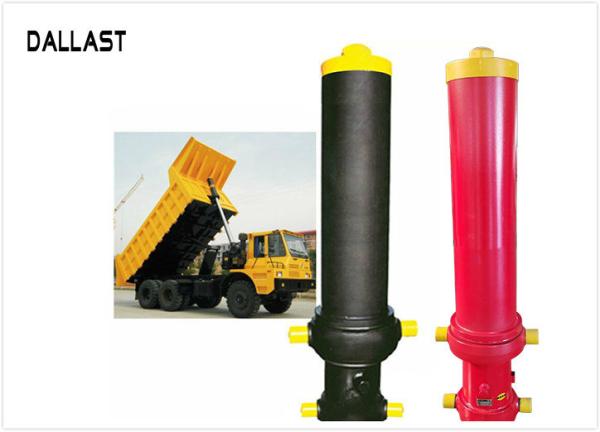

Product Show:
