Double Acting Custom Dump Truck Tipper Truck Hydraulic Cylinder
Double Acting:
Double Acting Hydraulic Cylinder,High Quality welded hydraulic
cylinders series.Professional and thorough analysis and design to
all kinds of oil cylinder through High-tech means
B.Unique production process and management methods
C.Imported cushion,sealing element,oil pipe and other components
D.Holds Many Patents,High quality, high reliability, high service
life.
Bore:Φ63.5mm
Rod:Φ31.75mm
Stroke:92mm
Pressure:3000PSI
Attention:
1. We have special departments to ensure that no strict quality
control any quality problem before delivery.
2. 2.Carefully check goods size table and product specifications.
Please check detail with customer service before buying .
3. 3. Receiving or take the goods, please sign the bill after the
first inspection, if have damaged items, or a few goods phenomenon,
please do not sign, the first contact with the customer details and
make logistics company personnel or personnel in proof of delivery
after processing, or receipt of any problems after the Seller shall
not be held responsible.
How Double Acting Hydraulic Cylinders Work and Their Uses:
With double acting hydraulic cylinders, the fluid acts on both
sides of the piston, alternating between each side. They can be
attached to external devices by using a gland to prevent fluid
escape. Double acting cylinders have two ends that are supplied
with hydraulic fluid, which is used to retract and extend the
piston.
Cylinder and cylinder of the advantages and disadvantages:
1. As the hydraulic system uses pressure is generally in the range
of 0.2-1.0 Mpa, so the cylinder is the driving force can not do
high-power components. Hydraulic cylinders can be done relatively
large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and
supply difficulties, the gas will be used directly into the
atmosphere, convenient, no pollution, hydraulic oil is the
opposite;
3. The air viscosity is small, the resistance to less than the
hydraulic oil;
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer with Exporting License.
Q2: How long have you been in Hydraulic Cylinder industry?
A2: Our factory is built in year 2002 .
Q3: How long is your warranty period?
A3: We offer 12 months warranty period after on board.
Q4: How long does it take to process orders?
A4: It usually takes 15-25 days to process. We don’t have stock.
Attention:
1. We have special departments to ensure that no strict quality
control any quality problem before delivery.
2. Carefully check goods size table and product specifications.
Please check detail with customer service before buying
3. Receiving or take the goods, please sign the bill after the
first inspection, if have damaged items, or a few goods phenomenon,
please do not sign, the first contact with the customer details and
make logistics company personnel or personnel in proof of delivery
after processing, or receipt of any problems after the Seller shall
not be held responsible.
Parameter:
| Stroke: | 50mm to 11000mm |
| Bore: | 40mm to 1000mm ( 1 ½’’ – 40’’) |
| Shaft: | 12mm to 500mm ( ½’’ -20’’) |
| Work pressure: | 16Mpa to 62Mpa (2250 PSI – 10150 PSI) |
| Seal: | Hallite, Parker, Merkel, DingZing, etc. |
| Paint: | Red, Grey, Yellow, Black, etc. |
| Material: | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc. |
| Certificate: | Gs, RoHS, Ce, ISO9001 |

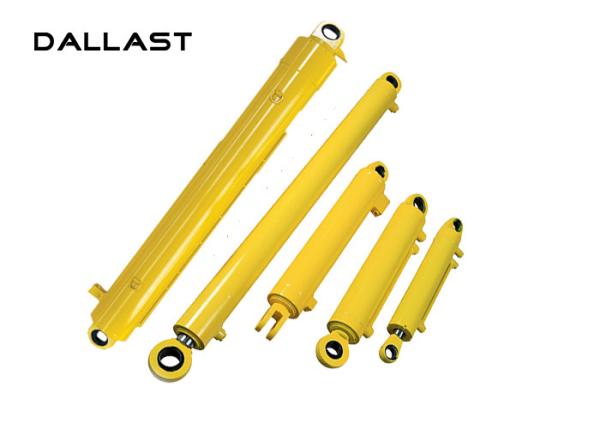

Product Show:
