    Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification

    Ask Lasest Price
    Brand Name : DALLAST
    Model Number : Standard , Non-standard
    Certification : GS CE ISO9001-2009 TS16949
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union,paypal
    Supply Ability : 50000PCS per year
    Delivery Time : 20- 25 days after down payment
    • Product Details
    • Company Profile

    Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification

    One way Telescopic Multi Stage Agricultural Dump Trailer Hydraulic Cylinder


    Application: The Hydraulic Cylinders can be used for Agricultural Vehicles ,Tricycle ,Sanitation Vehicles Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;


    Retractable multi-stage sleeve hydraulic cylinder is a long stroke multi-stage sleeve piston rod hydraulic cylinder, retractable hydraulic cylinder, also known as retractable sleeve hydraulic cylinder or multi-stage hydraulic cylinder.
    Telescopic hydraulic cylinder is composed of two or more piston hydraulic cylinder set, the piston rod of the previous stage piston cylinder is the cylinder of the latter piston cylinder.
    When pressure oil enters from the rodless chamber, the cylinder with the largest effective area of the piston starts to protrude. When the line reaches the end point, the cylinder with the effective area of the piston begins to protrude.
    Telescopic hydraulic stretching out in order from large to small in order to obtain a long working stroke, the effective cylinder extending the smaller the area, the faster the rate of extension.
    Therefore, the slow out faster, the corresponding hydraulic thrust from large to small; this thrust, speed changes, is suitable for a variety of automatic loading and unloading machinery on the thrust and speed requirements.

    TG series hydraulic cylinder for vechiles

    We have professional R&D team with rich design experience.

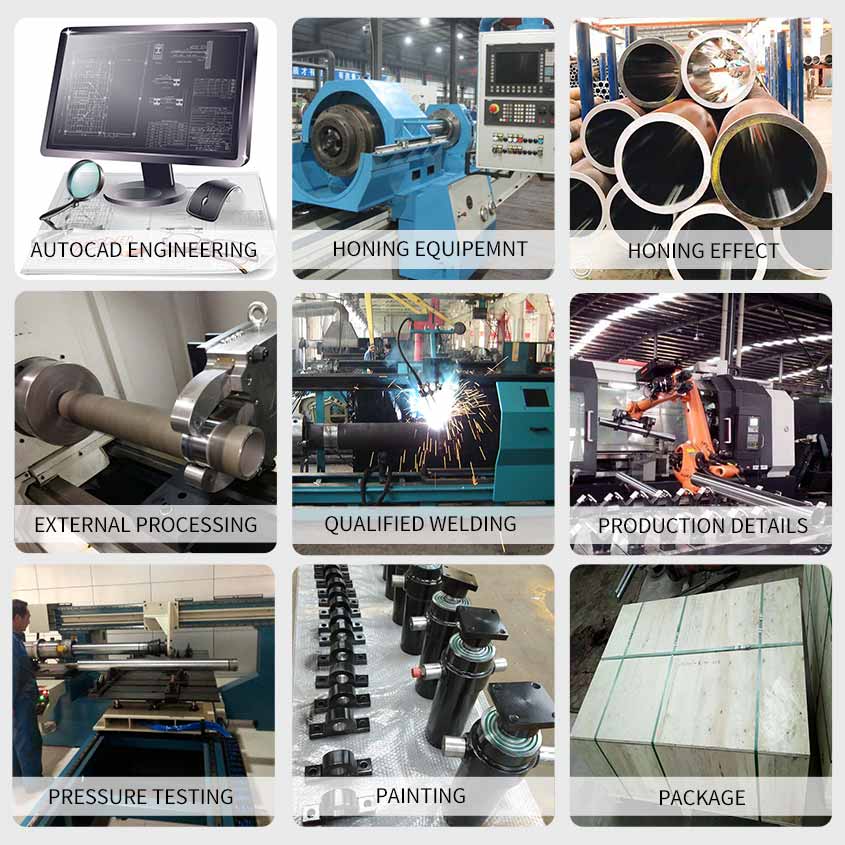

    We also establish strict but scientific product testing system so that products have perfect performance.

    Please kindly send us your drawings, models or providing us your parameters and
    specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.


    ModelPressure
    (Bar)
    Bore diameter
    (mm·)
    Installation distance
    (mm)
    Stroke
    (mm)
    4TG-E180*800160180140800
    4TG-E160*800160160140800
    3TG-E150*800160150140800
    5TG-E130*750160130140750
    3TG-E130*900160130140900
    4TG-E110*13601601101401360
    3TG-E110*15301601101401530
    3TG-E110*13501601101401350
    3TG-E110*10201601101401020
    3TG-E110*900160110260900
    2TG-E110*10201601101401020
    3TG-E90*1155160901401155
    3TG-E90*1020160901401020
    3TG-E90*90016090260900
    3TG-E90*75016090140750
    2TG-E90*90016090140900
    2TG-E90*60016090260600
    2TG-E90*50016090260500
    3TG-E70*75016070140750
