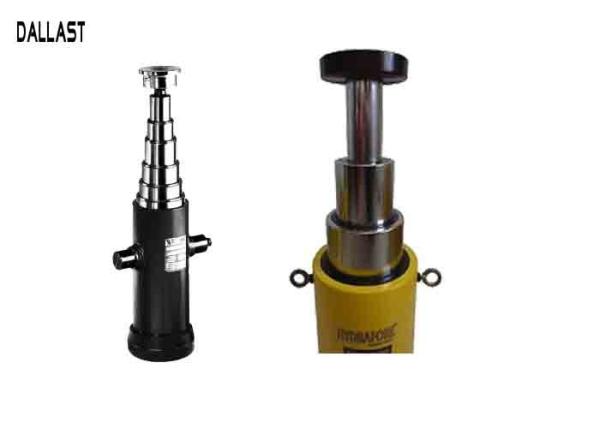

Single Acting Hydraulic Cylidner for Dump Trailer Telescoping Multi
Stage Small Bore Size
About our cylinders
Application: Our telescopic hydraulic cylinder adopted new technology and new
material and they also can be self-developed. Could be used for agricultural vehicles and other vehicles tilting the
bucket lift cylinder. With many advantages, such as rational construction, reliable
performance, convenient maintenance, heavy goods lift, long life,
etc. In order to tilt a dump truck to angles of 60° or more, telescopic
cylinders with strokes approaching the total bed length are
required.
Advantdges: The number of stages are able to produce, which is limited only by
the physical confines of the cylinder requirement. The length of a hydraulic cylinder is the total of the stroke, the
thickness of the piston, the thickness of bottom and head and the
length of the connections.
Our warranty of trailer cylinder is one year. So if there is any problem about the quality, please tell us
without hesitation. Our technician will serve for you! We are
sincerely hope to cooperate with you and establish a long term
relationship with you. So we always focus on quality, not price!
Features:
Pressure ranges: could be customized
Piston Ø: customized
Piston rod Ø: customized
Max. stroke speed: according to the product types
We use hard chromed rods (other options are available)
| standard product type | pressure (Bar) | bore size (mm) | rod size (mm) | stroke (mm) | close length (mm) | Stage |
| 3TG-E150*3830EZ | 160 | 150 | 98 | 840 | 1635 | 3 |
| 3TG-E150*3360EZ | 160 | 150 | 96 | 1000 | 1370 | 3 |
| 4TG-E150*4400EZ | 160 | 150 | 100 | 1000 | 1390 | 4 |
| 4TG-E180*4595EZ | 160 | 180 | 100 | 1200 | 1500 | 4 |
| 3TG-E150X850QZ | 160 | 150 | 96 | 850 | 1500 | 3 |
| 4TG-E130X800QZ | 160 | 130 | 80 | 850 | 1500 | 4 |
| 5TG-E130X800QZ | 160 | 130 | 75 | 850 | 1500 | 5 |
| 5TG-E140X800QZ | 160 | 140 | 75 | 850 | 1500 | 5 |
We can OEM & ODM, if you are interested in our products, please
feel free to contact us, send us the
drawings and tell us the details.
The most common problems when selecting a hydraulic cylinder are as
follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
