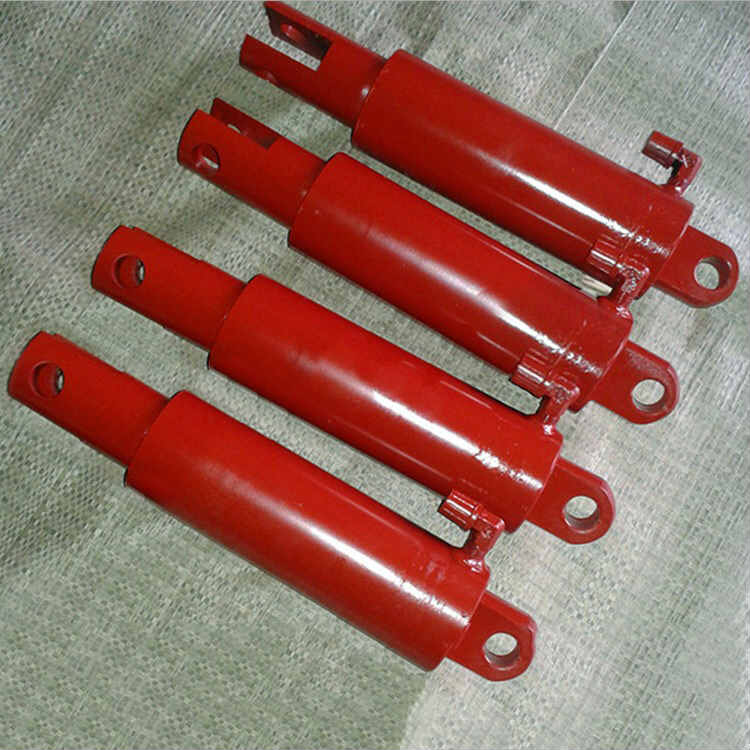

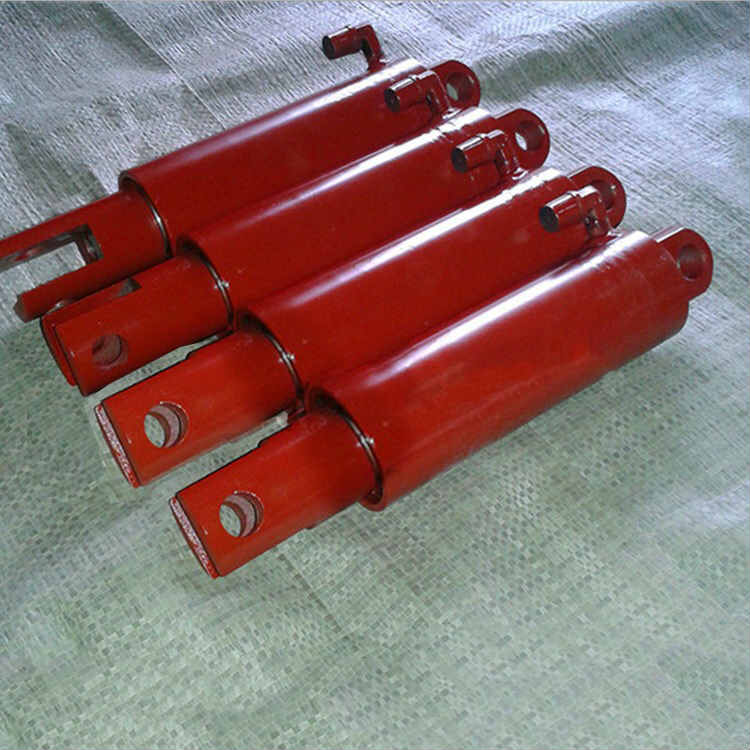

OEM Chrome Small Bore Hollow Single Piston Type Hydraulic Cylinder
Piston rod:
1. High strength damage resistant piston rod provides 100,000 PSI
minimum yield material in 1" through 4 1/2" diameters.
2. Larger diameters vary between 50,000 and 75,000 PSI minimum
yield material.
3. All rods are case hardened to 50-55 RC and hard chrome plated to
provide maximum wear life. Stainless steel is also available.
4. The hard chrome plated of the piston rod according to your
requirement.
Piston Seals:
Low friction, high load piston seals with outboard wear bands are
standard. Loaded lip seals and cast iron rings are optional.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring -
grinding - car processing - black nitriding and many other
processes.
3. The company accepted the Valet processing various types and
various sizes products, processing and processing more quotes,
welcome to consult.
Warranty & Service:
We offer 12 months warranty.
| Standard | Standard, Nonstandard |
| Certificate | Gs, RoHS, Ce, ISO9001 |
| Body Material | Alloy Steel, Stainless Steel etc. |
| Pressure | 16Mpa-32Mpa |
| Surface Treatment | Chrome Plating |
| Service Range | Interchangeable with Hyva,Penta,Edbro |
| Package | Shrink Film,Pallet,Plywood case and carton |
| Warranty | One year after shipping arrival |
| Delivery Time | 20-30 days after down payment |
| Color | Red, Black, Blue etc. |
The company mainly products
1. Engineering hydraulic cylinder series:
Hydraulic cylinder mainly refers to: hydraulic cylinders for
hydraulic systems such as construction machinery, heavy machinery,
cranes and mining machinery, but not limited to the above.
Hydraulic cylinder for the double-acting, single-piston hydraulic
cylinder, the installation of more use of earrings, according to
the cylinder head and cylinder connection can be divided into
different ways of external thread connection, the card key
connection and flange connection.
2. Metallurgical equipment hydraulic cylinder
Metallurgical equipment standard hydraulic cylinder with a variety
of specifications and varieties, bore diameter is generally in the
40-320mm range, working pressure ≤ 16MPa, available hydraulic oil
mechanical system loss of oil and emulsion and other working
medium, the use of temperature range of -40 ~ 80 ℃ , The
installation of a flange, earrings, pins and other forms and in
line with ISO6020 / 1-1981 standards, in addition to tripod (base)
type.
3. Vehicles hydraulic cylinder
This series of hydraulic cylinders is mainly used in hydraulic
systems of construction machinery, lifting and transport machinery,
mining equipment and other vehicles, the installation method is:
earrings, are double-acting single-piston hydraulic cylinder.
4. Heavy duty hydraulic cylinder
CD / CG250 CD / CG350 series heavy duty hydraulic cylinder
Heavy-duty hydraulic cylinder has a single-piston double-acting
CD-type differential piston cylinder and double acting CG-type
double-acting piston cylinder two. Its installation form and size
in line with ISO3320 standards, especially suitable for harsh
environments, heavy working conditions, suitable for steel, casting
and machinery manufacturing and other occasions.
5. Telescopic sleeve hydraulic cylinder
TG series of single-acting multi-stage telescopic sleeve hydraulic
cylinder, with small size, large stroke, etc., can be used for
heavy vehicles, agricultural vehicles and other vehicles tilting
the bucket lift cylinder.
