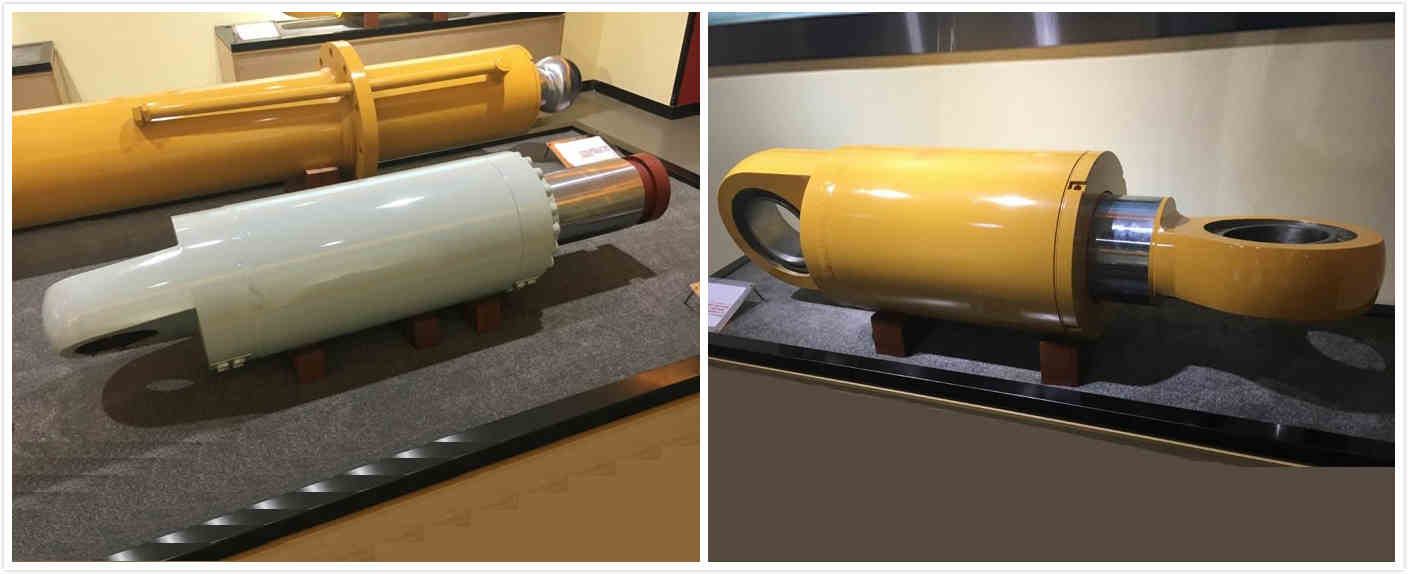

Large Bore Size Hydraulic Cylinder Piston Chrome Solid Rod for
Industrial Construction
HSG hydraulic cylinder's applicayion:
Loaders, excavator, forlift car, maining machinery and fire
engines, sanitation vehicles and other special vehicles.
Benefits:
Cylinder body: Adopting the good-quality alloy honed tube, though
cold-drawing and rolling to reach an excellent toughness and
surface hardness to improve the wear-resistance.
The seal system: Selecting the excellent seal kits from Japan and
Germany. Adopting the advanced physical design to make sure the
hydraulic cylinder get the best piston rod oil film.
Packing: Goods are packed with export standing standard
Warranty: We offer 12 months warranty
Good quality and low noise
The oil way design perfectly and can save the energy,avoid wast

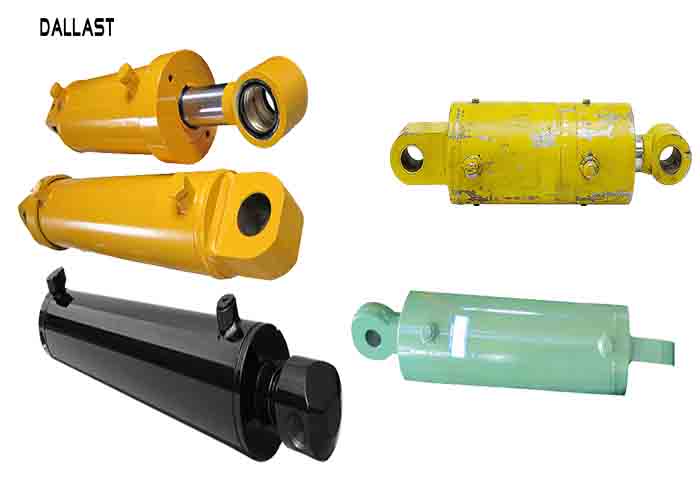

Many mounting styles
Several bore sizes and in varying strokes
Many of these sizes are available
| Farm Cylinders by Loader |
| HSG series double acting single piston rod hydraulic cylinder,
according to the use function is divided into : steering cylinder,
boom cylinder, lifting cylinder, tilt cylinder and quick change
cylinder, has the characteristics of connecting mode
diversification and buffer device etc. |
| type | operating pressure (Bar) | diameter of rod(mm) | total stroke (mm) | closed length (mm) | cylinder bore (mm) |
| HSG80/50*190-800 | 160 | 80 | 190 | 800 | 80 |
| HSG80/50*210-510 | 230 | 80 | 210 | 510 | 75 |
| HSG70/30*760-1055 | 340 | 70 | 760 | 1055 | 75 |
| HSG40/22*270-495 | 210 | 40 | 270 | 495 | 100 |
| HSG50/25*150-800 | 203 | 50 | 150 | 800 | 90 |
| HSG63/35*500-780 | 109 | 63 | 500 | 780 | 110 |
| operating temperature | -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen |
| speed range | speed range of operation (excluding cushion parts) is less than
200mm/s |
| piston rod | stainless steel, alloy steel, carbon steel etc. |
| rod wiper | urethane snap in |
Tips:
We offer OEM, ODM. If you needed, please feel free to contact us
and send us the drawings:
A
1. Bore size
2. Stroke length
3. Rod diameter
4. Mounting type
5. Mounting length
6. Paint color requirement
B. The product application description details
1. Type of machine(loader, steer loader, excavator, and etc.)
2. Type of function(hoist, swing, steering, and etc.)
3. Type of structure(piston, telescopic)
4. Single or double acting
5. Operating pressure
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring -
grinding - car processing - black nitriding and many other
processes.
3. The company accepted the Valet processing various types and
various sizes products, processing and processing more quotes,
welcome to consult.
Delivery:
1.We export from Qingdao port by sea.
2. Goods will be delivered on time.
3. Goods can arrive at the destination safely.
