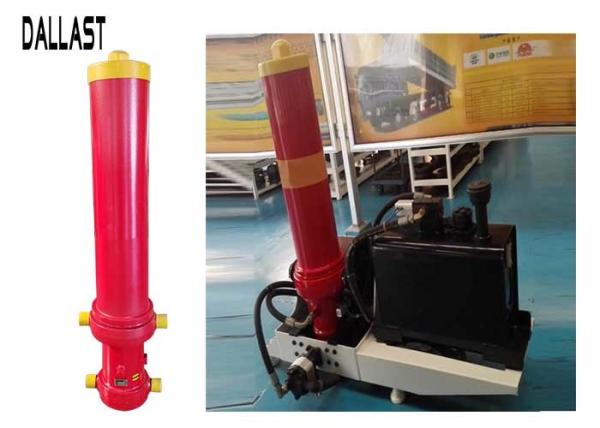

Dump Trailer Hydraulic Cylinder Muiti Stage Single Acting for
Mining Truck
Application:
Single-acting multistage sleeve hydraulic cylinder, large
stroke,can be used for heavy vehicles, agricultural vehicles and
other vehicles tilting the bucket lift cylinder. In order to tilt a dump truck to angles of 60° or more, telescopic
cylinders with strokes approaching the total bed length are
required.
Mining Truck
Refuse trucks
Garbage Station
Refuse movable compactor – Packer
Military defend automotive trucks
Ground support equipment
Advantages:
Big lifting force; higher efficiency; stronger weather resistance;
better performance
We can work with you to develop competitive pricing structures and
highly responsive manufacturing lead-times to ensure your job is
completed on-time and on-budget.
From custom hydraulic cylinders to project-based designs, or an OEM
specific application, we can provide the solution that will best
suit your project requirements. Tips: Please provide photo or
technical diagrams of hydraulic cylinder.
| standard product type | pressure (Bar) | stroke (mm) | mounting distance (mm) |
| 3TG-E180*4210ZZ | 160 | 4210 | 343 |
| 4TG-E160*4130ZZ | 160 | 4130 | 343 |
| 4TG-E160*5150ZZ | 160 | 5150 | 343 |
| 4TG-E180*4000ZZ | 160 | 4000 | 343 |
| 4TG-E180*5390ZZ | 160 | 5390 | 343 |
| 3TG-E180*3850ZZ | 160 | 3850 | 343 |
| 4TG-E180*5390ZZ | 160 | 5390 | 343 |
| 3TG-E150*3830EZ | 160 | 3830 | 343 |
Faetures: Choice of mounting styles, cross tube or trunnion; hard chrome
plated stages; the number of stages are able to produce, which is limited only by
the physical confines of the cylinder requirement; the length of a hydraulic cylinder is the total of the stroke, the
thickness of the piston, the thickness of bottom and head and the
length of the connections. |
Material:
Stainless steel is used in many of our designs to ensure corrosion,
it does not end the life of the cylinder prematurely. Many
stainless steel threads are coated with a proprietary substance to
prevent thread galling to facilitate ease of assembly over the life
of the cylinder, when periodic maintenance is required such as seal
replacement.
Warranty:
We offer 12 months warranty.
From the date of delivery within 12 months, our company is
responsible for the replacement, repair or return. The user is a
hydraulic cylinder propulsion, to improve the inherent quality of
the fuel tank is the purpose of our factory production and the
pursuit of goals.
The most common problems when selecting a hydraulic cylinder are as
follows:
A. Retract dimension
B. Stroke length
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating
F. Bore Diameter
G. Application details
