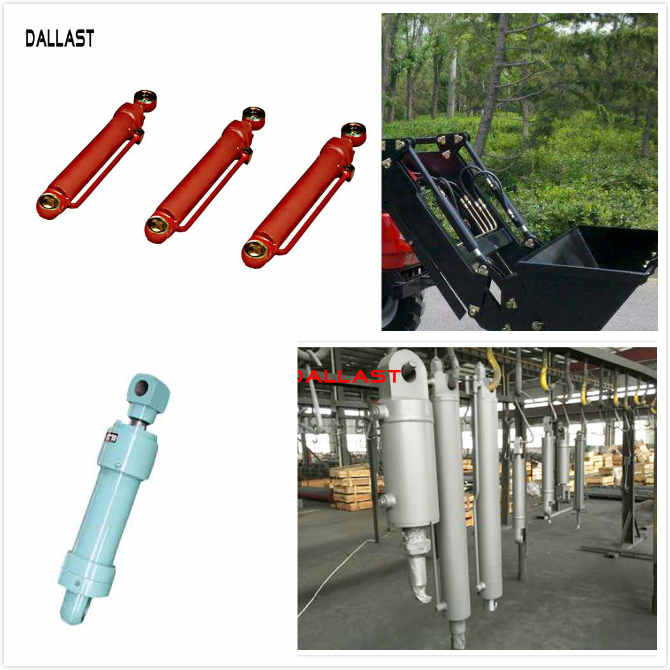

Farm Hydraulic Cylinders Piston Double Acting Chrome Rodfor Tractor
Backhoe
Benefits:
Piston rod: Stainless steel, alloy steel, carbon steel etc.
End cap: Casting seal
Mounting style: Pins and clips included
Rod wiper: Urethane snap in
Packing: Goods are packed with export standing standard
Warranty: We offer 12 months warranty
Low noise:Good quality and low noise
Low energy:The oil way design perfectly and can save the
energy,avoid wast
Many mounting styles
Several bore sizes and in varying strokes
Many of these sizes are available
| type | operating pressure (Bar) | diameter of rod(mm) | total stroke (mm) | closed length (mm) | cylinder bore (mm) |
| HSG80/50*190-800 | 160 | 80 | 190 | 800 | 80 |
| HSG80/50*210-510 | 230 | 80 | 210 | 510 | 75 |
| HSG70/30*760-1055 | 340 | 70 | 760 | 1055 | 75 |
| HSG40/22*270-495 | 210 | 40 | 270 | 495 | 100 |
| HSG50/25*150-800 | 203 | 50 | 150 | 800 | 90 |
| HSG63/35*500-780 | 109 | 63 | 500 | 780 | 110 |
| operating temperature | -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen |
| speed range | speed range of operation (excluding cushion parts) is less than
200mm/s |
Tips:
We offer OEM, ODM. If you needed, please feel free to contact us
and send us the drawings:
A
1. Bore size
2. Stroke length
3. Rod diameter
4. Mounting type
5. Mounting length
6. Paint color requirement
B. The product application description details
1. Type of machine(loader, steer loader, excavator, and etc.)
2. Type of function(hoist, swing, steering, and etc.)
3. Type of structure(piston, telescopic)
4. Single or double acting
5. Operating pressure
Installation method:
The most commonly used mounting options are flange, trunnion,
clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting
is chosen based upon the application’s requirements.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI
minimum yield material in 1" through 4 1/2" diameters. Larger
diameters vary between 50,000 and 75,000 PSI minimum yield
material. All rods are case hardened to 50-55 RC and hard chrome
plated to provide maximum wear life. Stainless steel is also
available. The hard chrome plated of the piston rod according to
your requirement.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring -
grinding - car processing - black nitriding and many other
processes.
3. The company accepted the Valet processing various types and
various sizes products, processing and processing more quotes,
welcome to consult.
Delivery:
1.We export from Qingdao port by sea.
2. Goods will be delivered on time.
3. Goods can arrive at the destination safely.
